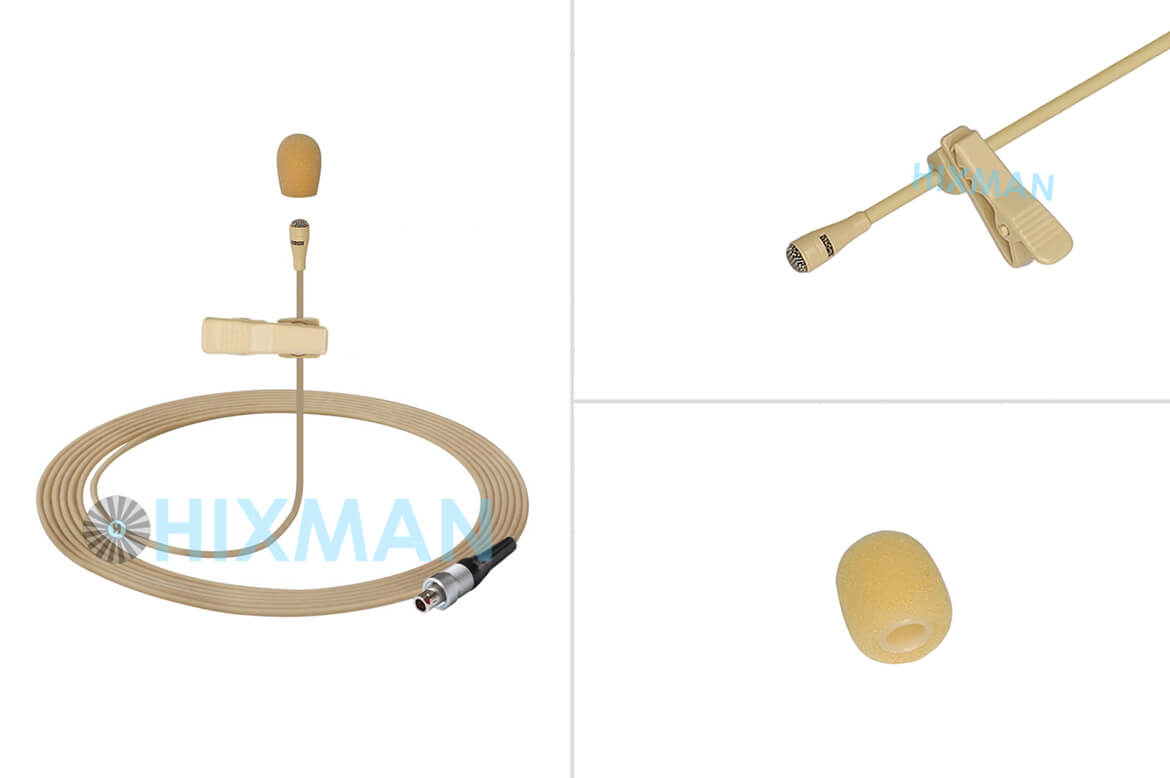

LB1 Lavalier Microphone

Advanced new microphone design

weat and moisture won't stop your signal when you use the beige HIXMAN LB1 cardioid lavalier microphone as your transducer of choice. This ultralightweight mic boasts Cardioid condenser capsule with an Unidirectional polar pattern, yielding full, natural tone and consistent off-axis response along with low self-noise and wide dynamic range. The LB1 cardioid lavalier microphone is one of the best choices for amplification in high volume situations where gain before feedback is a problem. The results you get from the miniature size of this cardioid lavalier are more than you would expect. The paintable 2.3mm diameter cable resists kinks, maintains flexibility, and uses a redundant ground for enhanced shielding. The cable end is terminated with a 3-pin LM connector for compatibility with an array of wireless transmitters, Such as Audio Limited Sennheiser Shure Lectrosonics Trantec Wisycom Zaxcom wireless transmitters with LM 3 Pin.

This Lavalier Condenser Microphone features a cardioid polar pattern, with a tight pick-up pattern to address feedback concerns. The microphone has an extremely small format of a mere 4mm in diameter, and a surprising capability to handle up to 135dB max SPL. The LB1 Lavalier Microphone is perfect for stages, outdoor activities, houses of worship, theaters, broadcasters, and presenters.

FEATURES

• High class back electret condenser cardioid directionality microphone
• Lightweight and easily concealed for use in film and television production applications.
• Improved off-axis consistency produces accurate reproduction regardless of vocal source position or movement
• Low sensitivity mitigates distortion and contributes to high SPL handling
• Fixed frequency cap with internal hydrophobic woven lining resists sweat and moisture
• Paintable 2.3mm diameter cable resists kinks, maintains flexibility

• Connector: 3-pin LM
• Code: S3

TECH SPECS

Polar Pattern:	Uni-Directiona
Frequency Response:	50-16KHz
Capsule Dimension:	Ø 0.3' (4.0 mm)
Sensitivity:	-46dB ± 3dB
Output Impedance:	800Ω ± 30%(at 1KHz)
SNR:	>65dB
Operating Voltage:	1.5 to 12 Volts
Power Supply Voltage:	+5V with 10 kOhm load
Cable Length:	4 Feet(1.2 m)
Weight:	0.9 oz(0.26 g)

Compatible Transmitter

• Audio Limited A10-TX, A10-TX-US Wireless Transmitter

• Sennheiser SK 250, SK 3063, SK 50, SK 2000, SK 5012, SK 5212, SK 5212-II, SK 6000, SK 9000 Wireless Transmitter
• Shure AD1LEMO3, ADX1LEMO3, ADX1M, AXT100LEMO3, ULXD1LEMO3, UR1MLEMO3 Wireless Transmitter
• Lectrosonics SSM, DBu-Lemo Wireless Transmitter
• Trantec  SD7000 Digital Wireless, SD7300 Wireless Transmitter
• Wisycom  MTP30, MTP40, MTP40S, MTP41, MTP41S Wireless Transmitter
• Zaxcom TRX900AA, TRX900LA, TRX900LT, TRX900LTH, TRX900LTHS, TRX900LTS, TRXFB3, TRXLA2, TRXLA3, TRXLT3, ZMT3 Wireless Transmitter


What’s Included?

• LB1 miniature Lavalier Microphones
• Beige Cable Clips
• Windscreen
