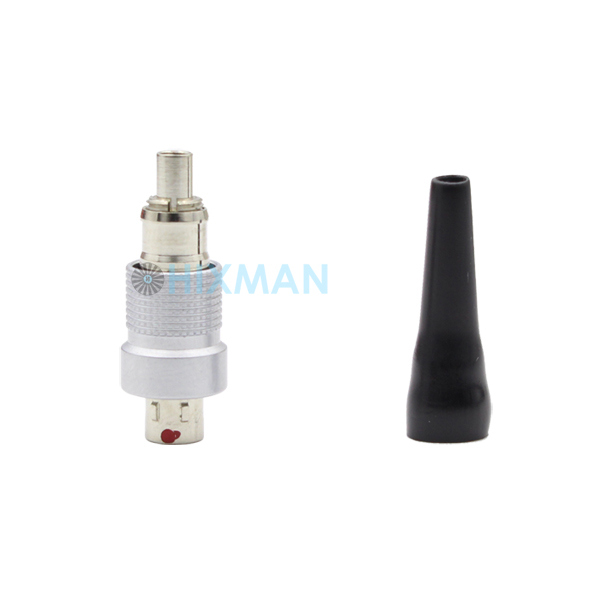

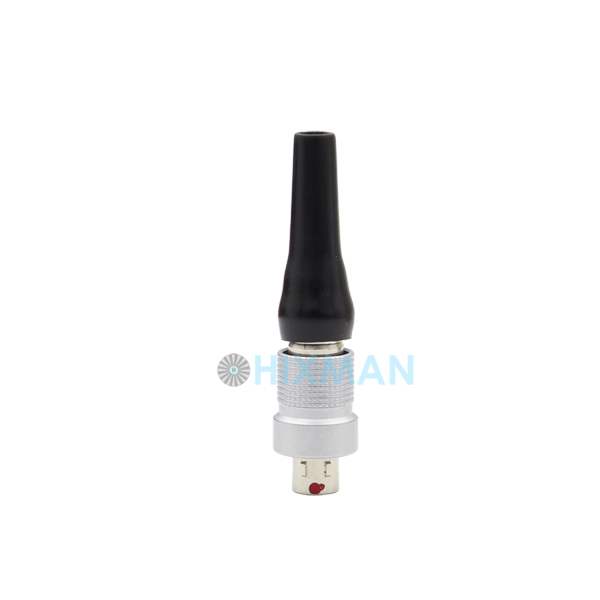

3-Pin FVB Mic Connector

A identical replacement for the LEMO 3-Pin Connector: Straight plug with key (B), 00 series, short shell for special cable crimping and for fitting a bend relief. Includes a black silicon rubber strain relief.

This 3-Pin Male Screw-Locking Connector is designed for installation on lavalier/Headset/Headworn microphones to connect to Sennheiser, Shure, Zaxcom, Trantec, Wisycom, Lectrosonics, Audio Limited wireless transmitters with Lemo 3-Pin socket.

Mechanical Details:

• Shell Style / Model: FVB - straight plug for special cable crimpingmm Plug

• Keying: 2 keys (alpha=60, plug: male contacts, receptacle: female contacts)
• Housing Material: Brass (nickel plated) shell, collet nut, latch sleeve and mid pieces

Performance Details:

• Contact Type: Solder.

• Dielectric Withstanding Voltage:  250 VAC Min.
• Contact Diameter: 0.02 in | 0.5 mm
• Bucket Diameter: 0.016 in | 0.4 mm
• Max. Solid Conductor: 0.09 mm^2 (AWG 28)
• Max. Stranded Conductor: 0.05 mm^2 (AWG 30)
• R (max): 8.7 mOhm
• Rated Current (A): 3A
• V Test (Contact-Shell): 950 V (AC), 1300 V (DC)
• V Test (Contact-Contact): 800 V (AC), 1100 V (DC)
